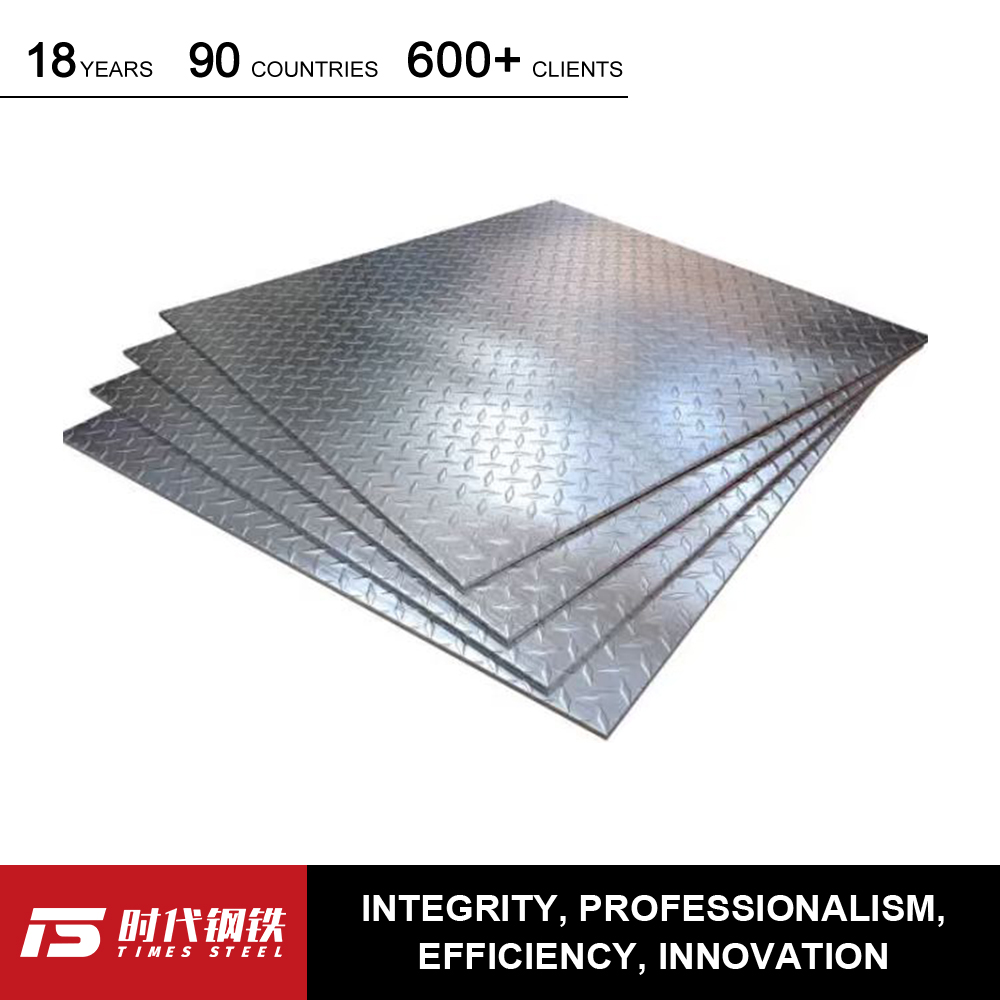

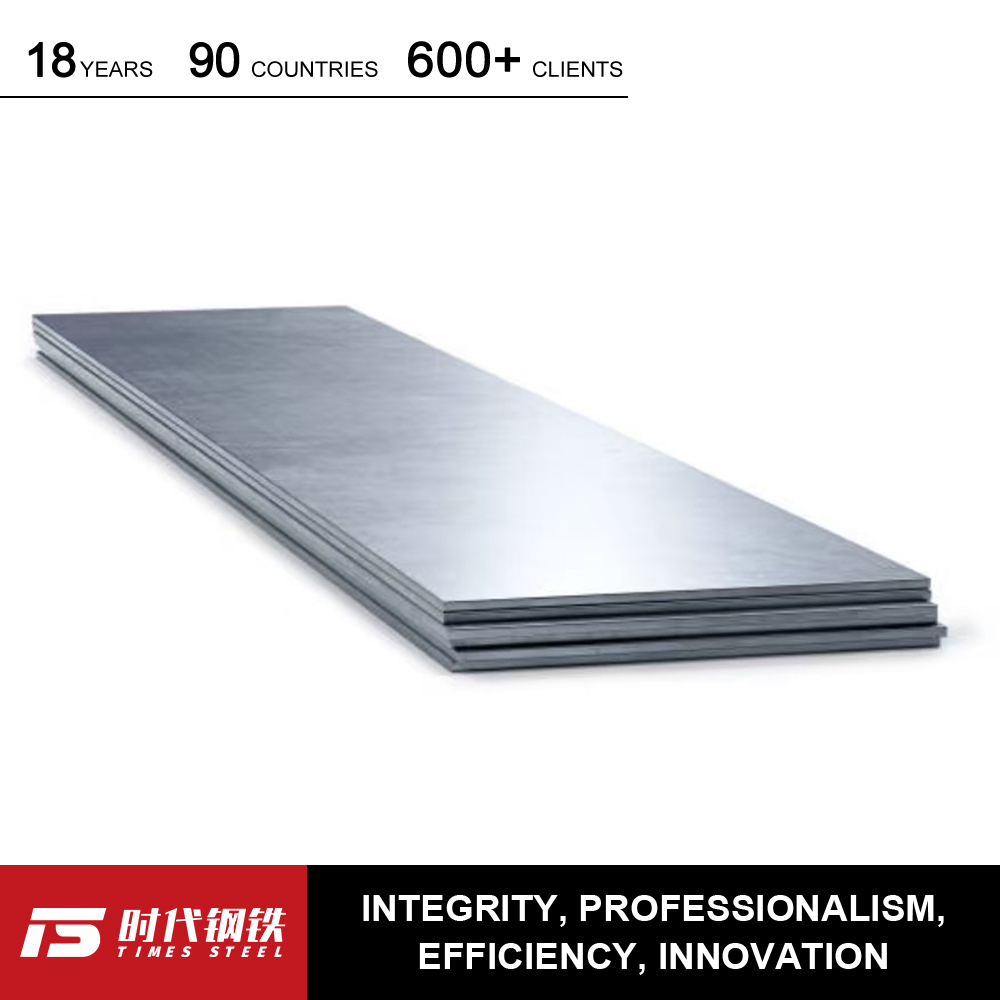

Stainless Steel Sheet
Stainless steel plate is an alloy steel with smooth surface, high weldability, corrosion resistance, polishability, heat resistance, corrosion resistance and other characteristics. It is widely used in various industries and is an important material in modern industry. Stainless steel is divided into austenitic stainless steel, ferritic stainless steel, martensitic stainless steel, and duplex stainless steel according to the structure state.
Stainless Steel Sheet Grades
| Item | Stainless steel sheet(cold rolled or hot rolled) |
| Thinckness | Coldrolled:0.15mm-10mm |
| Hot rolled:3.0mm-180mm | |
| Widthness | 8-3000mm |
| Length | 1000mm-11000mm or as customer’s requirement |

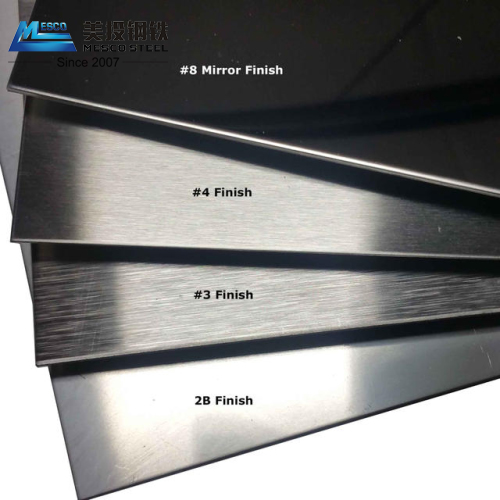

| Finish | 2B,2D,4B,BAHLMIRROR,brushNO.1- NO.4 8Kand so on. |
| Standard | ASMEASTMENBSGBDIN,JIS etc |
| Price term | Ex-Work,FOB,CNFCFRCIFFCA tc |
| Payment term | TTL/Ctrade assurance etc |
| Material | mainlv201.202,304.304L304H 316,316L,316Ti,225,33,63,66,409321,310,410,416 410S,43347H,2Cr133Cr13 et |
| 300series:301,302,303,304,304309309310310316316L.316Ti317L321.347 | |
| 200series:201,202202cu204 | |
| 400series:409,409L410420430431439440441444 | |
| Others:2205,2507,2906,330,660,630,63117-4ph,17-7ph,S318039 904L,etc | |
| Duplex stainless steel:S22053S250732225331803,S32205,S32304 | |
| Special Stainless Steel:904L347/347H317/317L316T i,254Mo | |
| Application range | Escalator, Elevator, Doors |
| Furniture | |
| Production tools,Kitchen appliances, freezers,cold rooms | |
| Auto Parts | |
| Machinery and Packaging | |
| Equipment and Medical devices |
Classification of Stainless Steel
| Iron + carbon = steel | ||||
| + Chromium = stainless steel （at least 10.5% chromium） | ||||
| martensitic alloys | austenitic alloys | duplex alloys | precipitation hardening alloys | |
| Ferritic alloys | carbon（0.10-1.2%） +chromium （12-18% | ++chromium（16%） +nickel（8%） | +chromium （19%） +molybdenum +small amount of nickel | +chromium +nickel +copper/or other elements |
Performance Characteristics
| alloy group | magnetic response | work hardening rate | corrosion resistance | hardenable | ductility | high temperature resistance | low temperature resistance | weldability |
| austenitic | generally no | very high | high | by cold work | very high | very high | very high | very high |
| duplex | yes | medium | very high | no | medium | low | medium | low |
| ferritic | yes | medium | medium | no | medium | high | low | low |
| martensitic | yes | medium | medium | quench & temper | low | low | low | low |
| precipitation hardening | yes | medium | medium | age harden | medium | low | low | high |
Classification of Stainless Steel
| Austenitic Stainless Steels | |||||||||
| AISI | DIN | C | Cr | Ni | Mo | N | Mn | Cu | Other |
201 | 1.4372 | 0.15 | 16.0-18.0 | 1.25-5.5 | - | 0.25 | 5.50-7.50 | 0.80 | - |
| 301 | 1.4310 | 0.15 | 16.0-18.0 | 6.0-8.0 | - | 0.10 | 2.00 | - | - |
| 304L | 1.4307 | 0.030 | 17.5-19.5 | 8.0-12.0 | - | 0.10 | 2.00 | - | - |
| 321 | 1.4541 | 0.08 | 17.0-19.0 | 9.0-12.0 | - | 0.10 | 2.00 | - | Ti5X(C+N) |
| 309 | 1.4828 | 0.08 | 22.0-24.0 | 12.0-15.0 | - | - | 2.00 | - | - |
| 310S | 1.4845 | 0.08 | 24.0-26.0 | 19.0-22.0 | - | - | 2.00 | - | - |
| 316L | 1.4404 | 0.030 | 16.0-18.0 | 10.0-14.0 | 2.00-3.00 | 0.10 | 2.00 | - | - |
| Ferritic Stainless Steels | |||||||||
| AISI | DIN | C | Cr | Ni | Mo | N | Mn | Cu | Other |
| 409 | 1.4512 | 0.030 | 10.5-11.7 | 0.50 | - | 0.030 | 1.0 | - | Ti 6X(C+N) to 0.5Cb0.17 |
| 430 | 1.4016 | 0.12 | 16.0-18.0 | 0.75 | - | - | 1.0 | - | - |
| 434 | 1.4113 | 0.12 | 16.0-18.0 | - | 0.75-1.25 | - | 1.0 | - | - |
| 444 | 1.4521 | 0.025 | 17.5-19.5 | 1.0 | 1.75-2.50 | 0.035 | 1.0 | - | Ti+Cb[0.20+4(C+N] to 0.80max. |
| Martensitic Stainless Steels | |||||||||
| AISI | DIN | C | Cr | Ni | Mo | N | Mn | Cu | Other |
| 410 | S41000 | 0.08-0.15 | 11.5-13.5 | 0.75 | - | - | 1.0 | - | - |
| 420 | S42000 | 0.15min. | 12.0-14.0 | 0.75 | 0.50 | - | 1.0 | - | - |
| 440A | S44002 | 0.60-0.75 | 16.0-18.0 | - | 0.75 | - | 1.0 | - | - |
| 440C | S44004 | 0.95-1.20 | 16.0-18.0 | - | 0.75 | - | 1.0 | - | - |

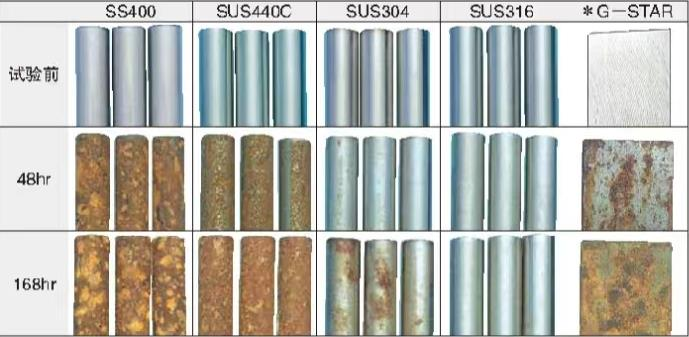

Conduct composite corrosion test
according to JsH8502 cycle test method
Test Conditions: 8 hours is one cycle
1 salt water spray test (5% Na35 ℃) 2hr
2 dry (60 ℃) 4hr
3 wet (95% RH.35 ℃ 3hr
Stainless Steel Classify

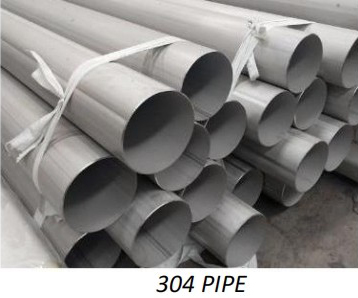

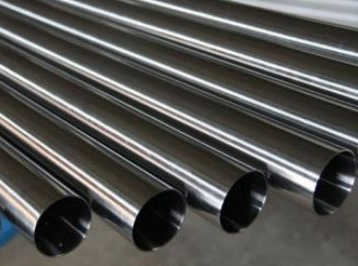

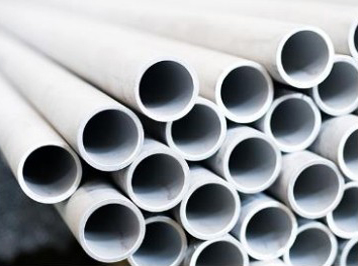

Stainless Steel Weld Pipe

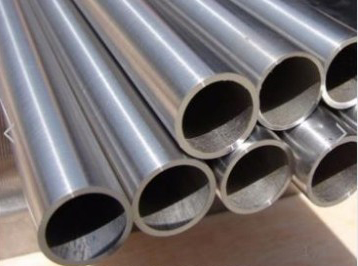

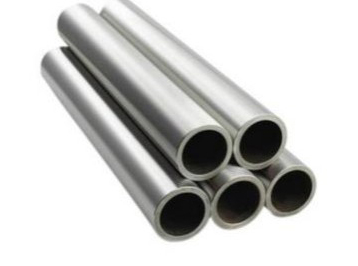

Stainless Steel Seamless Pipe

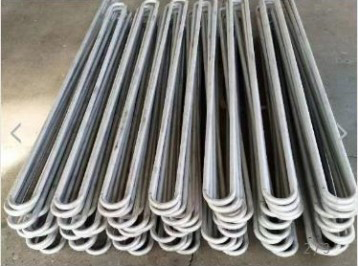

SERPENTINE HEAT EXCHANGE PIPE
SEAMLESS PIPE
BA PIPE
AP PIPE
HIGH PRESSURE FIRE PIPE
PETROCJEMICAL PIPE

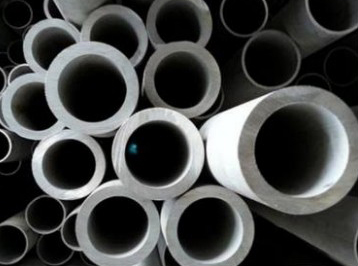

Stainless Steel Seamless Pipe

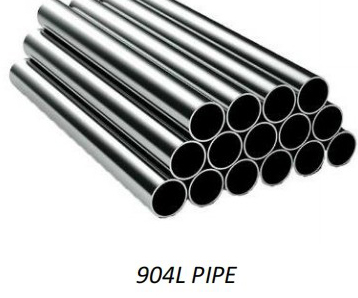

904L PIPE
2205 DUPLEX PIPE

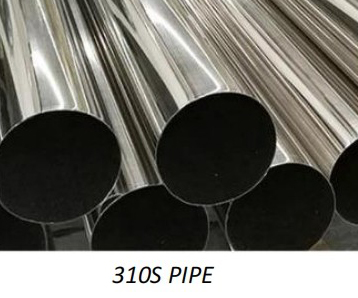

310S PIPE
347H PIPE
321 PIPE
304L PIPE

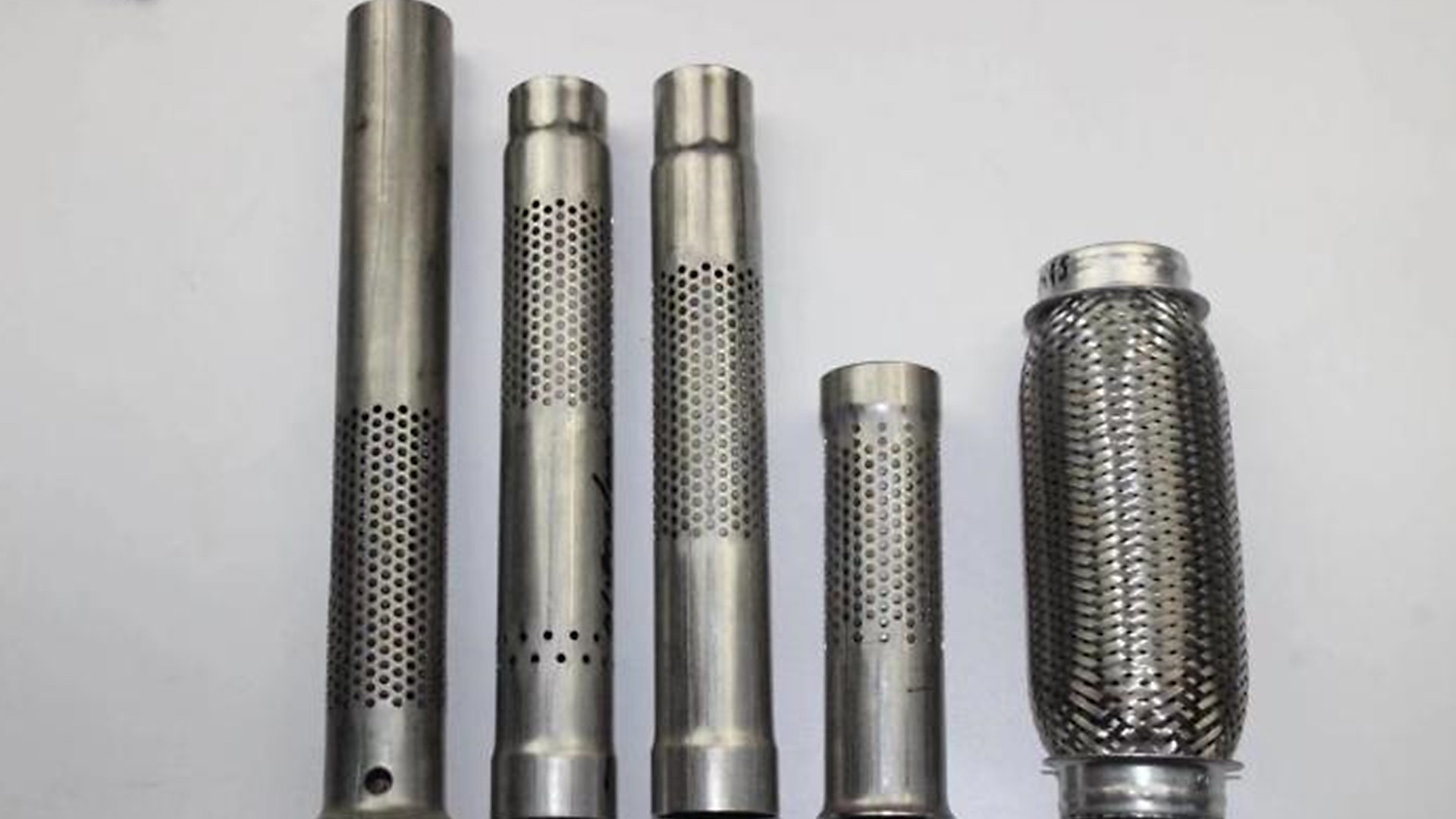

Stainless Steel Pipe Processing Services
· BENDING
· WELDING
· FLARING
· CUTTING
· PUNCHING
· POLISHING
· PICKING

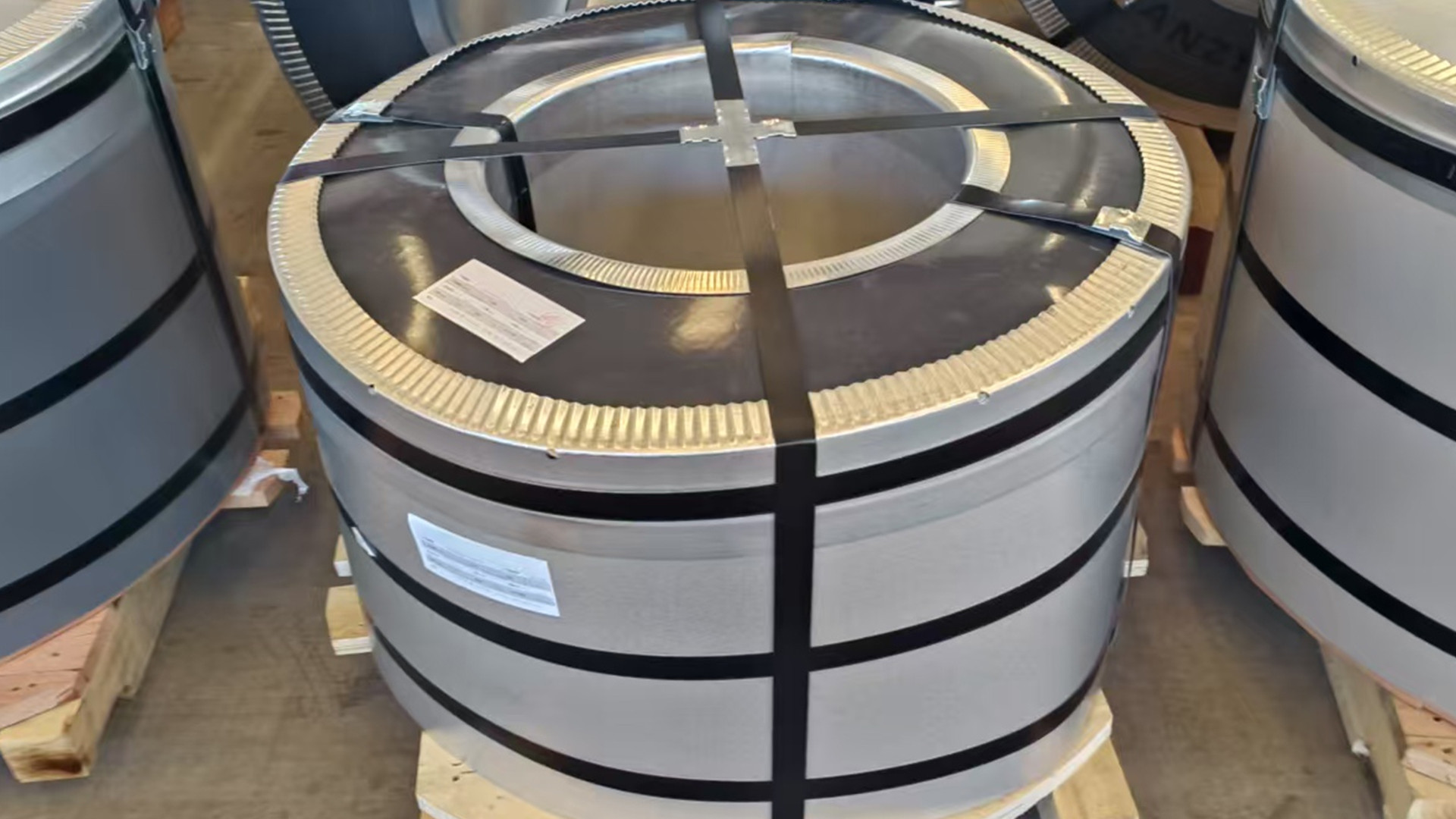

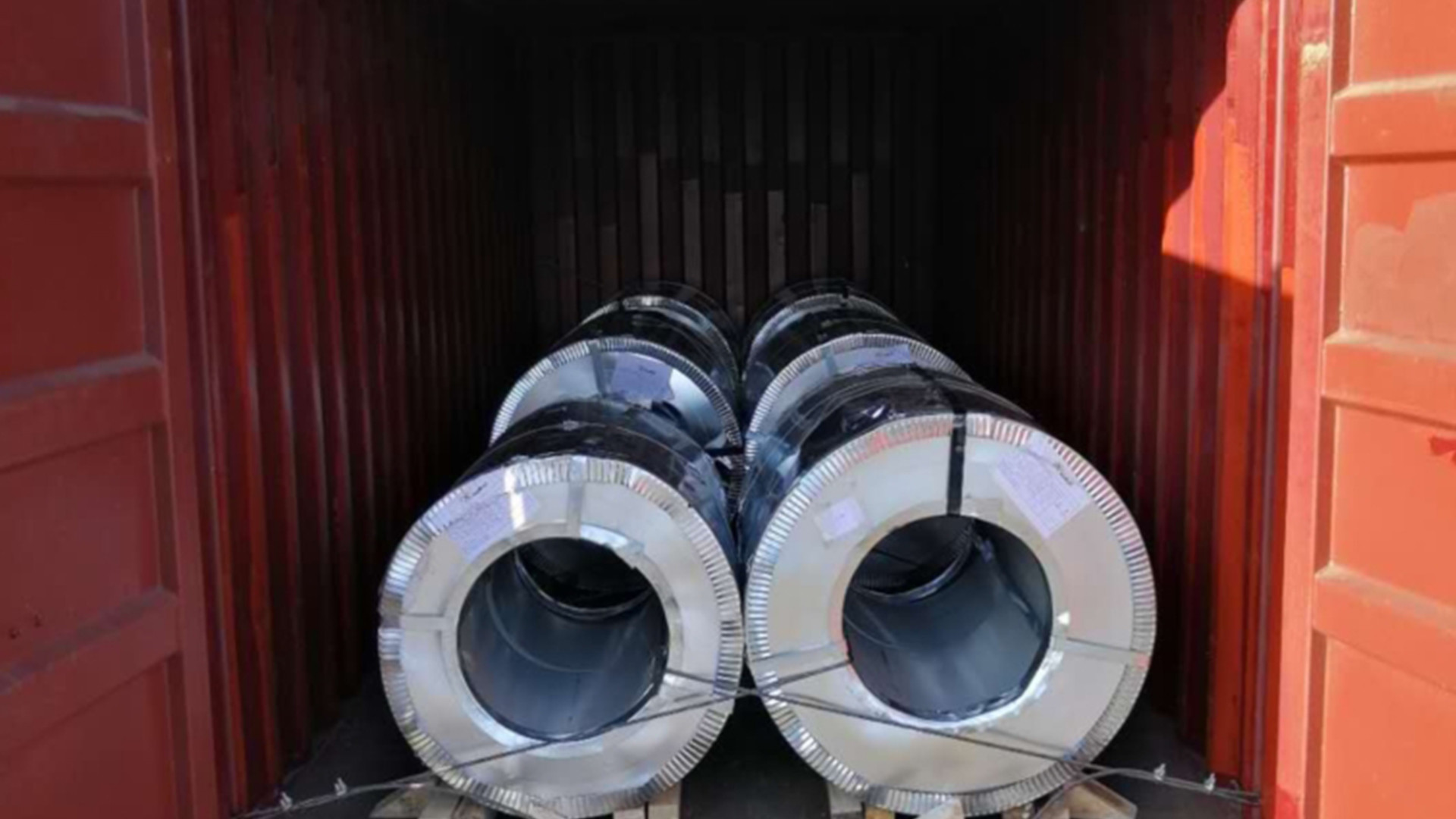

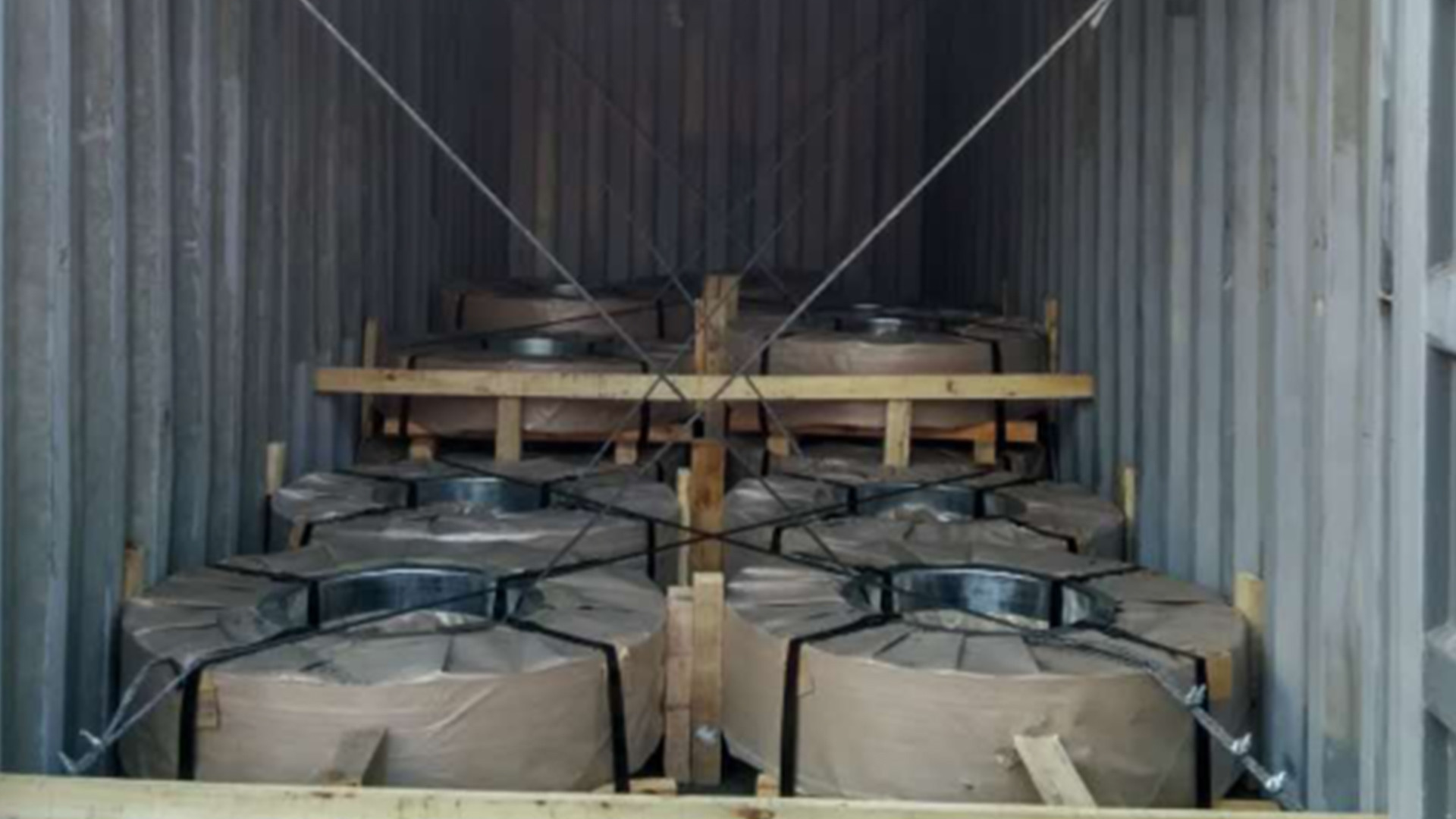

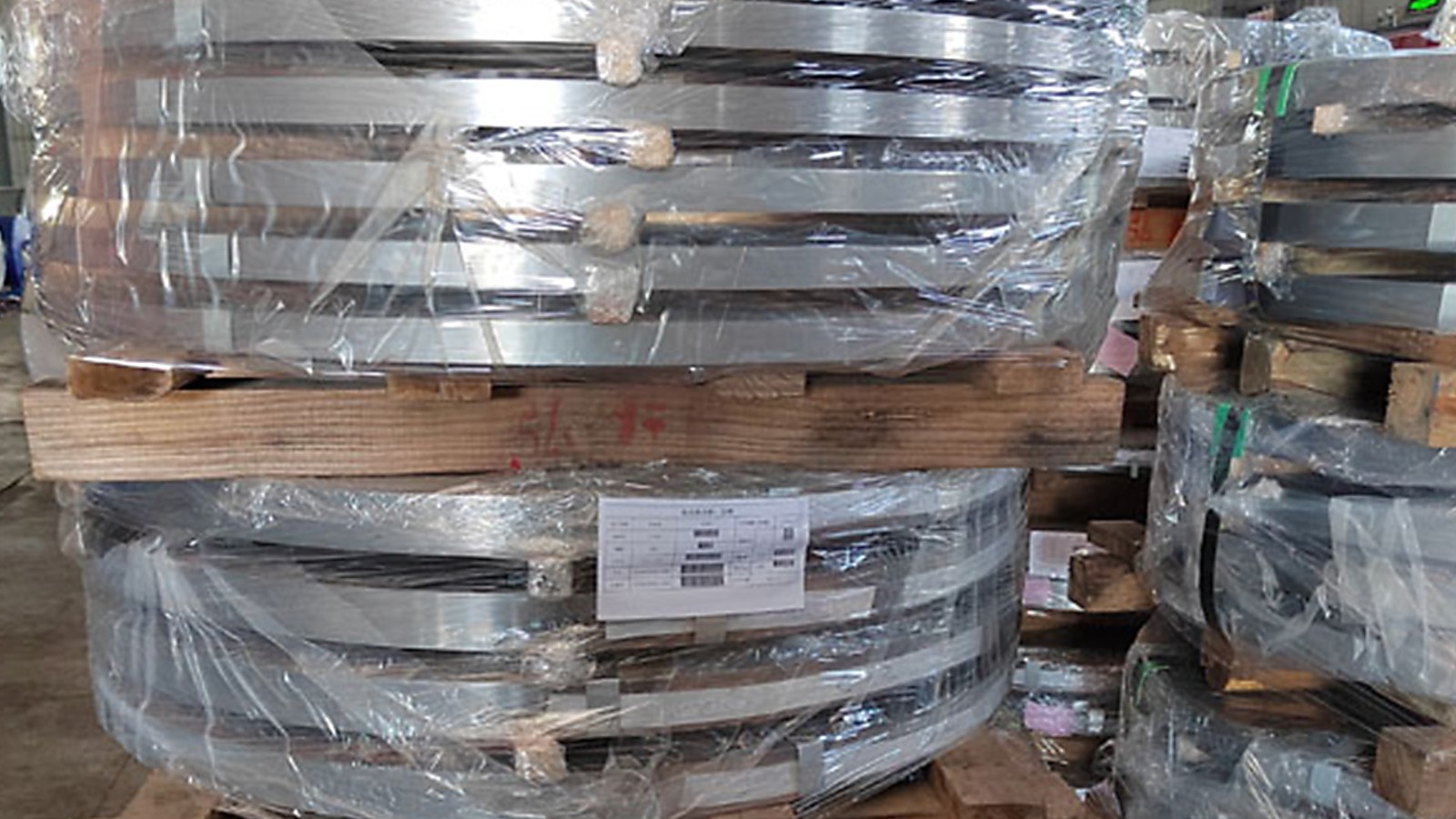

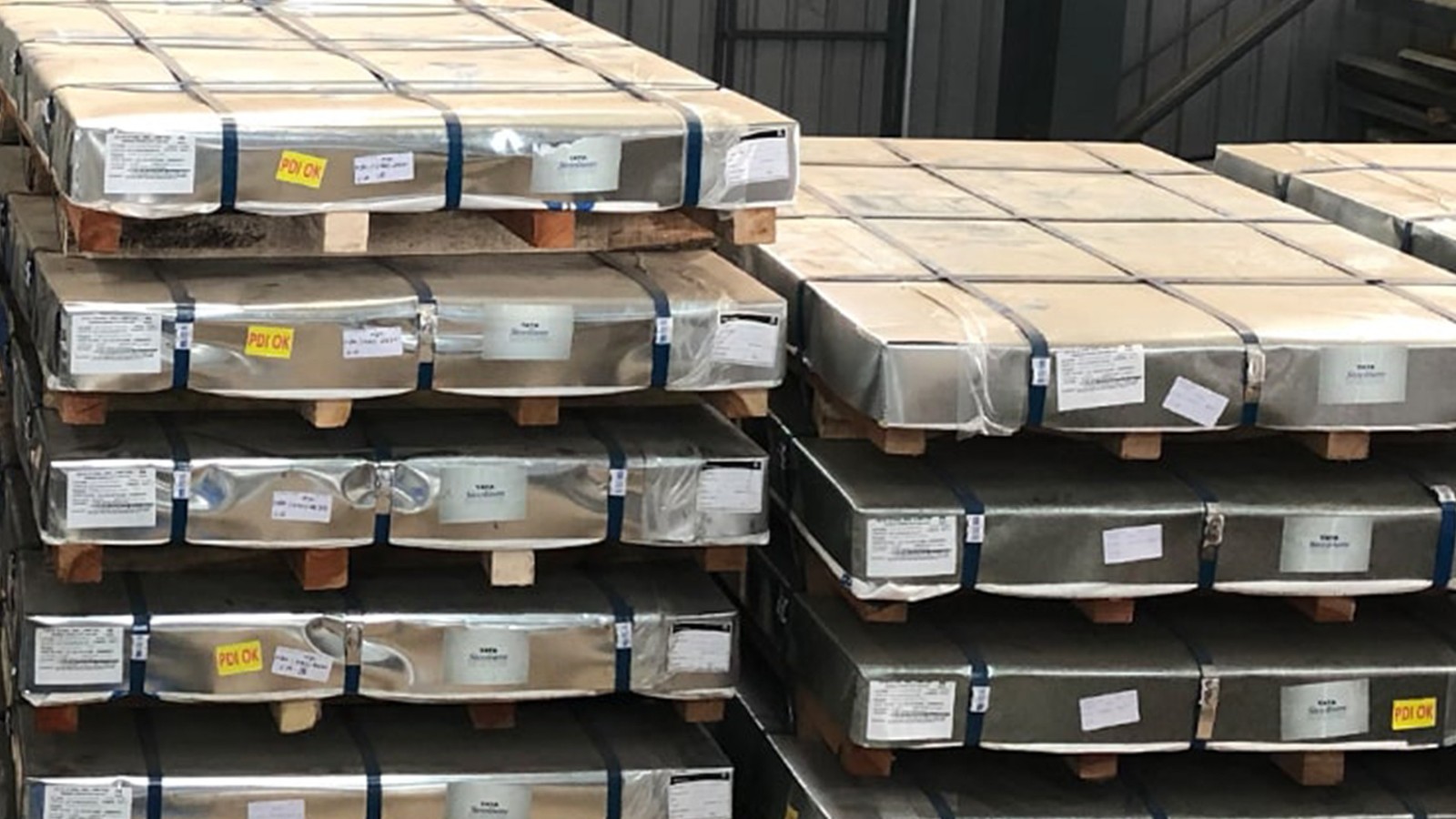

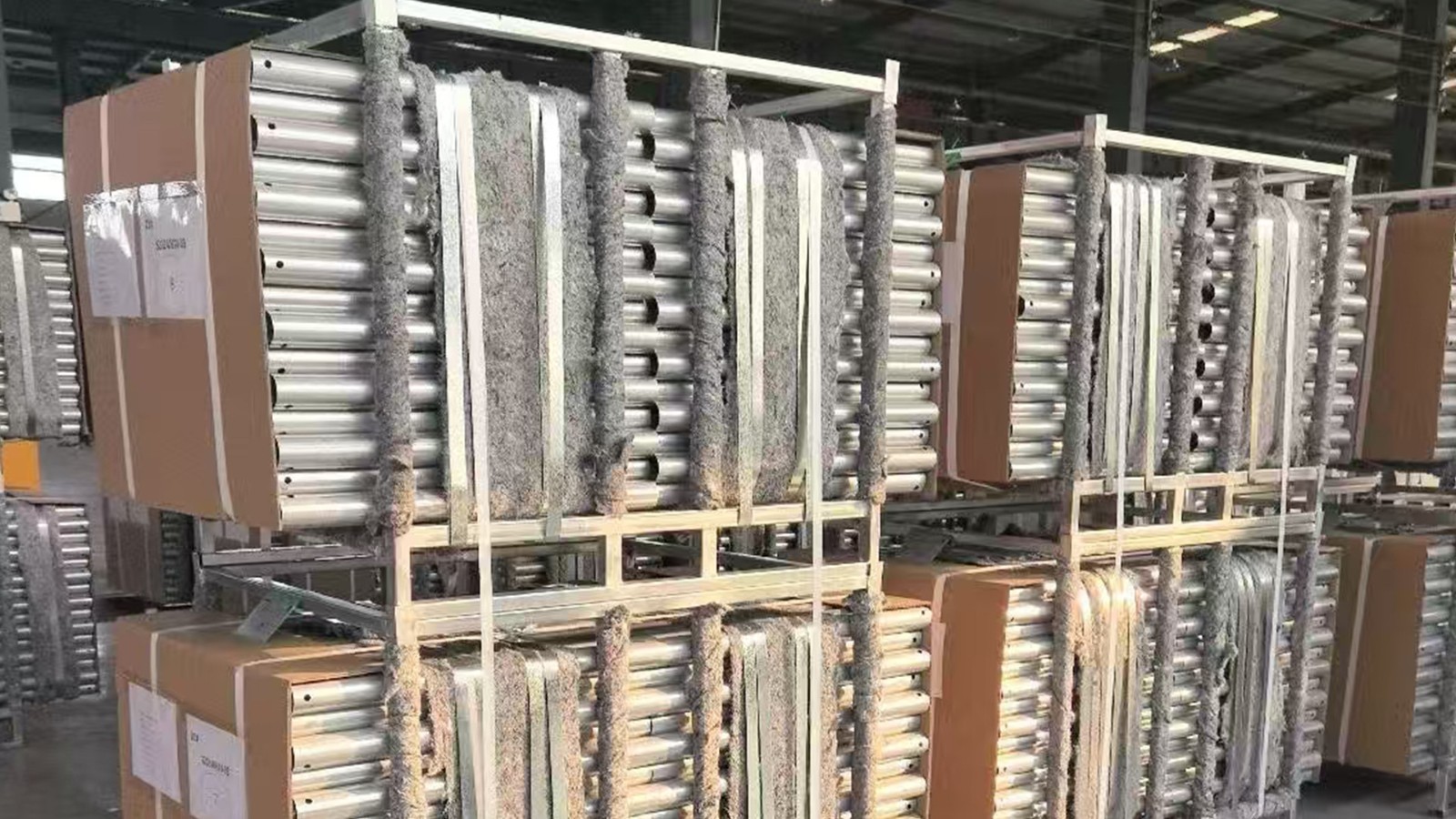

Packing And Shipping
Processing Service
