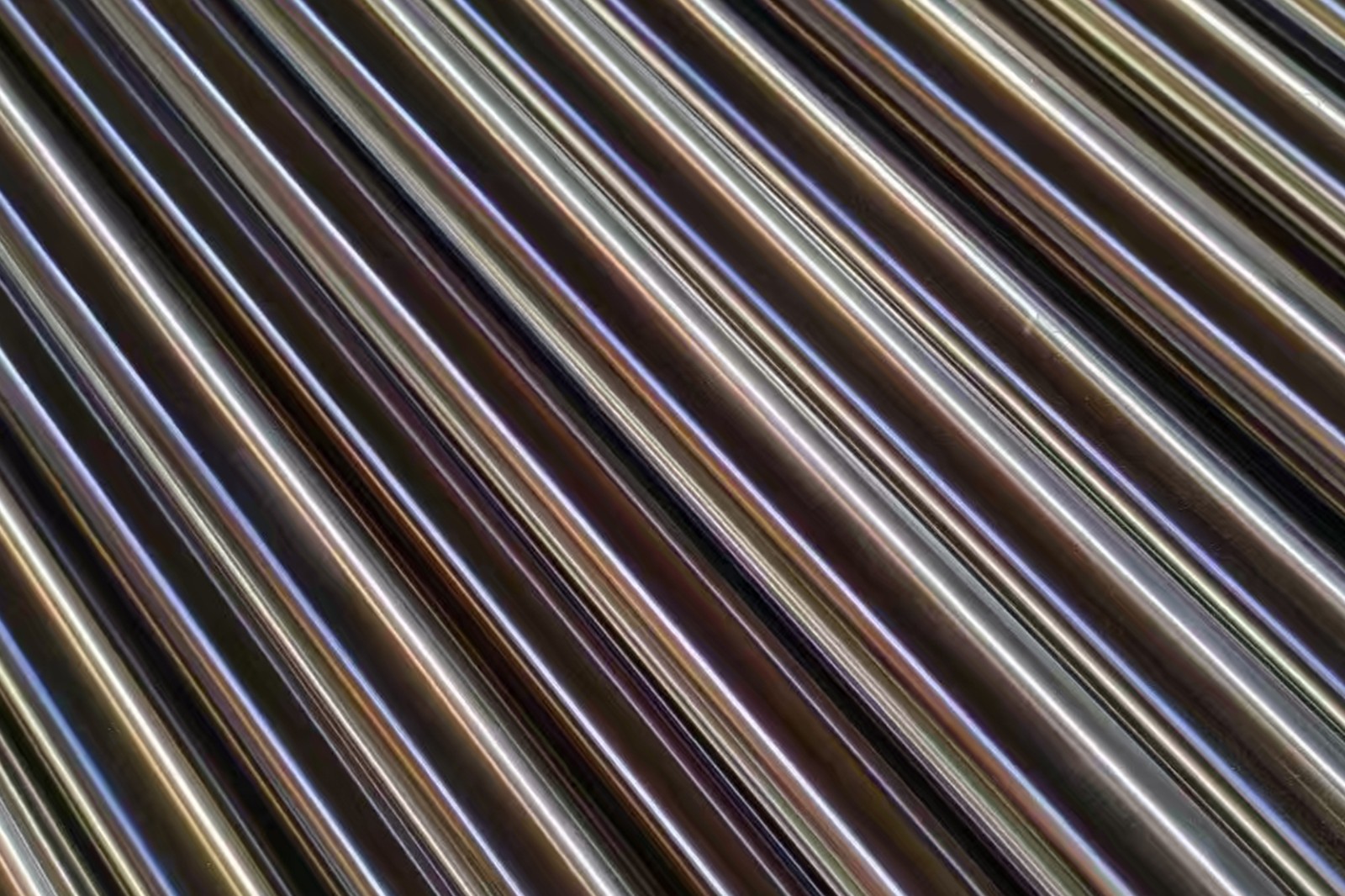

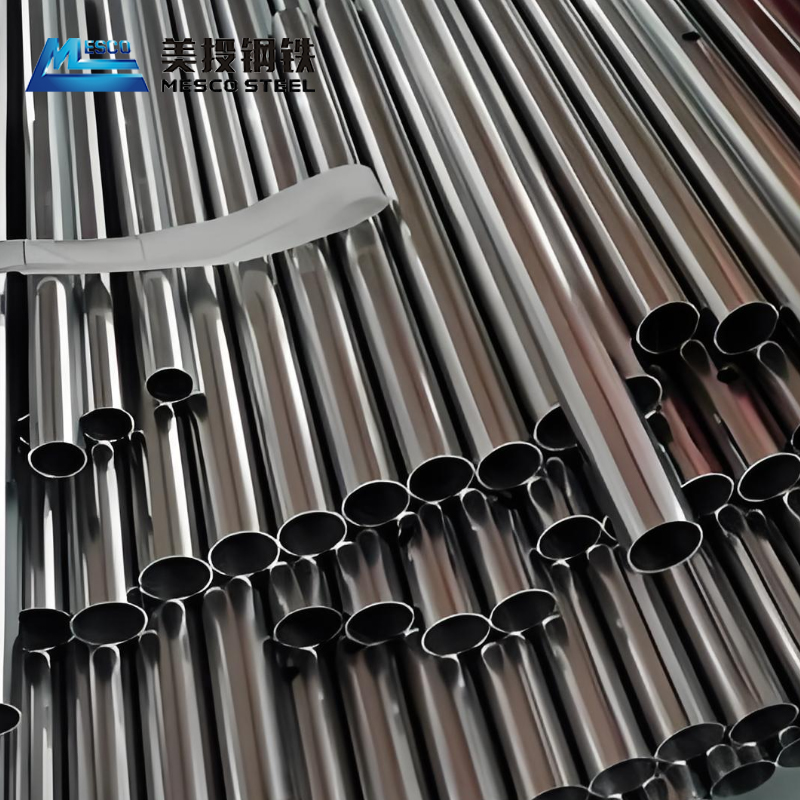

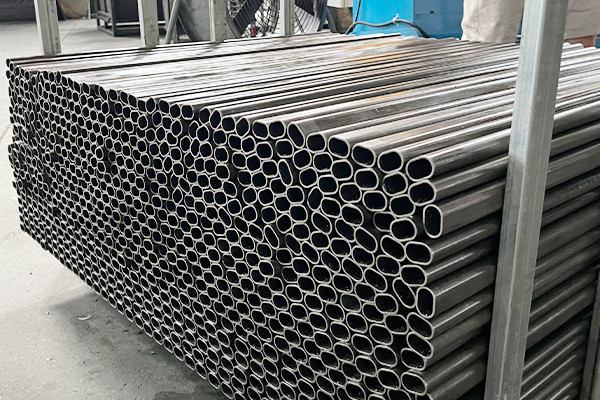

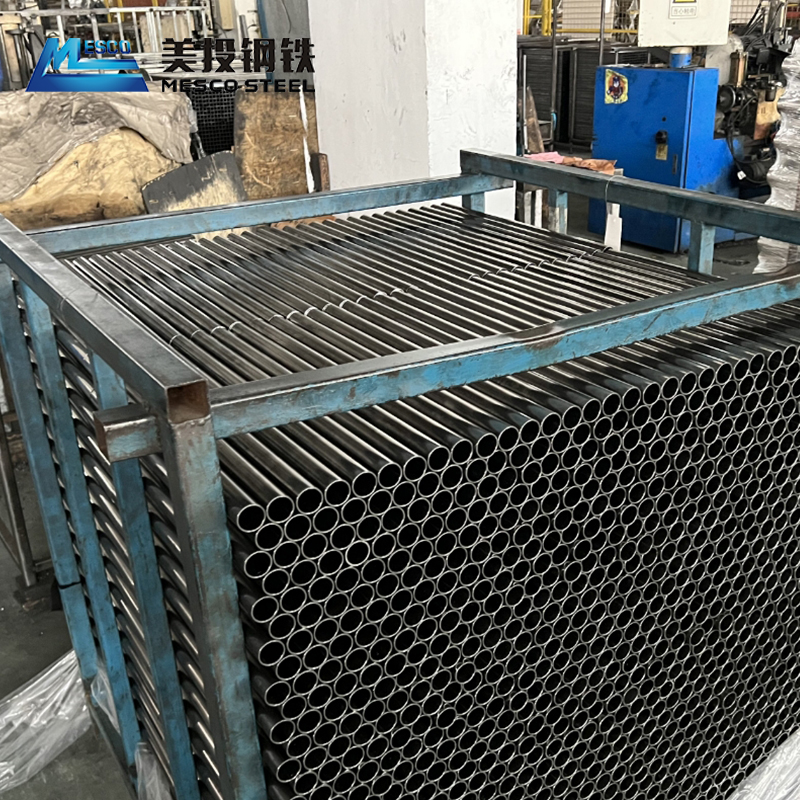

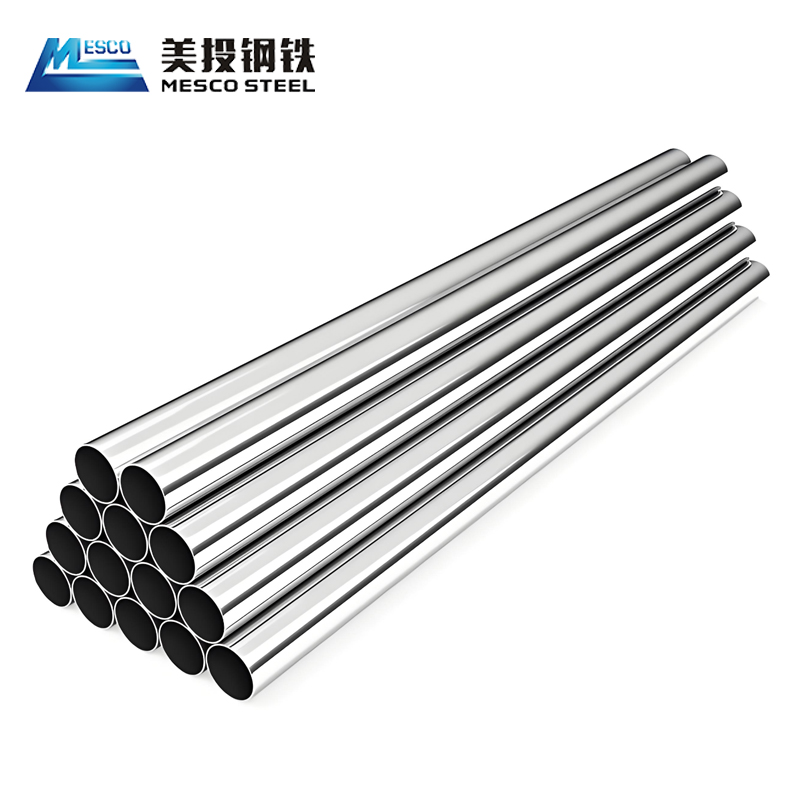

Stainless Steel Pipe

MESCO is a supplier to many globally renowned automotive enterprises, providing stainless steel perforated tubes for use as mufflers. · It has extremely rich experience in the production of stainless steel tubes, and can deliver goods within 30 days for conventional sizes. · It strictly controls the quality and will arrange the shipment only after inspection. The base materials and weld seam of the tube undergo the solid solution treatment integrally. Exhaust steel tubes are produced in accordance with the APQP process. The outer diameter tolerance and inner weld residual height are strictly controlled to ensure no internal weld traps exist. Each piece is subjected to a 100% one-by-one pressure detection at 15 kg pressure for 15 seconds. The entire length of the pipe measures 12 meters with throw light on both inside and outside surfaces, followed by an 18-meter tube pressure test.


Stainless Steel Tube


·  MESCO is a supplier to many globally renowned automotive enterprises, providing stainless steel perforated tubes for use as mufflers.
·  It has extremely rich experience in the production of stainless steel tubes, and can deliver goods within 30 days for conventional sizes.
·  It strictly controls the quality and will arrange the shipment only after inspection.
The base materials and weld seam of the tube undergo the solid solution treatment integrally. Exhaust steel tubes are produced in accordance with the APQP process. The outer diameter tolerance and inner weld residual height are strictly controlled to ensure no internal weld traps exist. Each piece is subjected to a 100% one-by-one pressure detection at 15 kg pressure for 15 seconds. The entire length of the pipe measures 12 meters with throw light on both inside and outside surfaces, followed by an 18-meter tube pressure test.


Stainless Steel Pipe Description

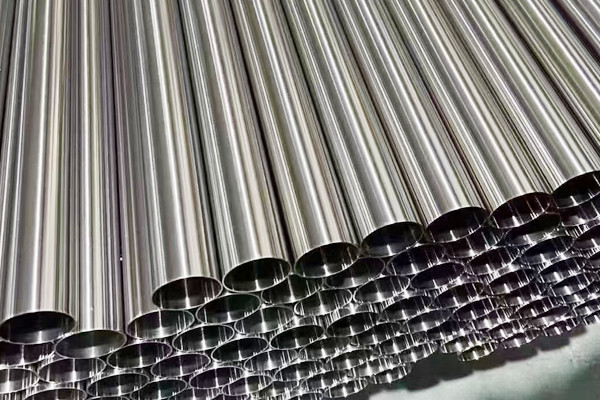

Straight Tube

Grade304/409L/436L/439/430/441
O.D⌀25mm-133mm
W.T0.6mm-2.0mm
Welding methodTIG Welding
Expansion test1.3 times of the pipe OD
Bending testBend 180°,no cracks in the weld seam


Stainless Steel
Pipe

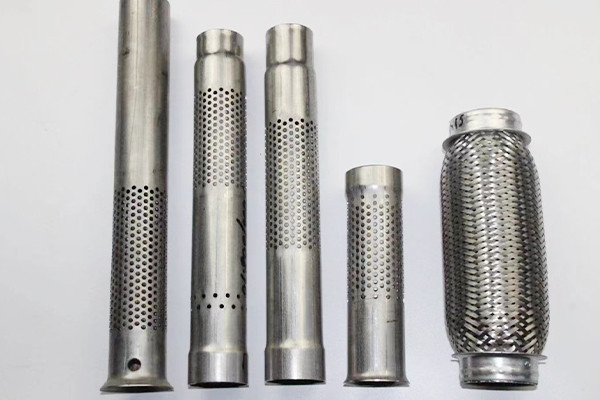

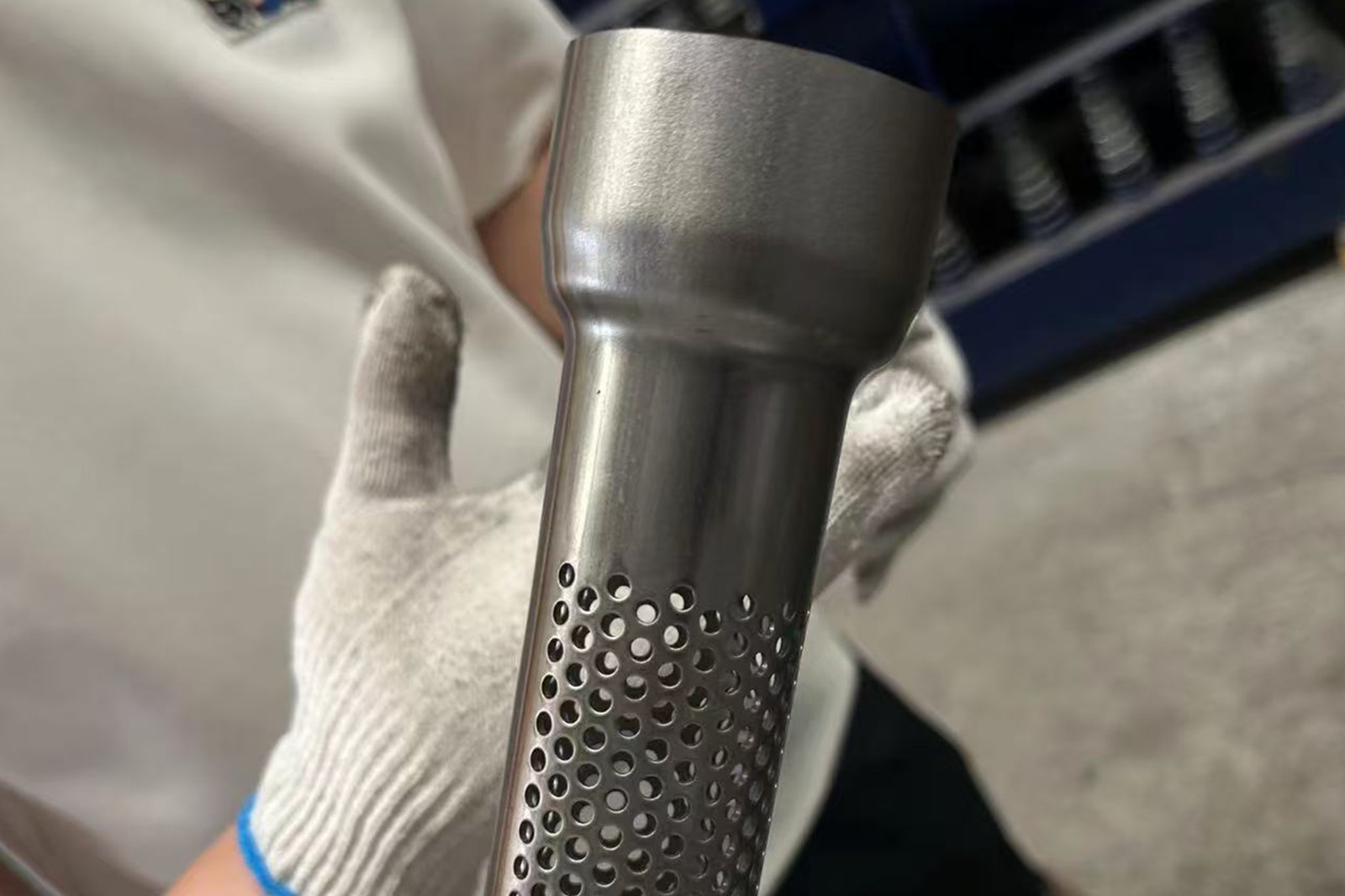

Holes Tube

Grade304/409L/436L/439/430/441
O.D⌀6mm-133mm
W.T0.5mm-3.0mm
Welding methodTIG Welding
Expansion test1.3 times of the pipe OD
Bending testBend 180°,no cracks in the weld seam

Stainless Steel
Pipe

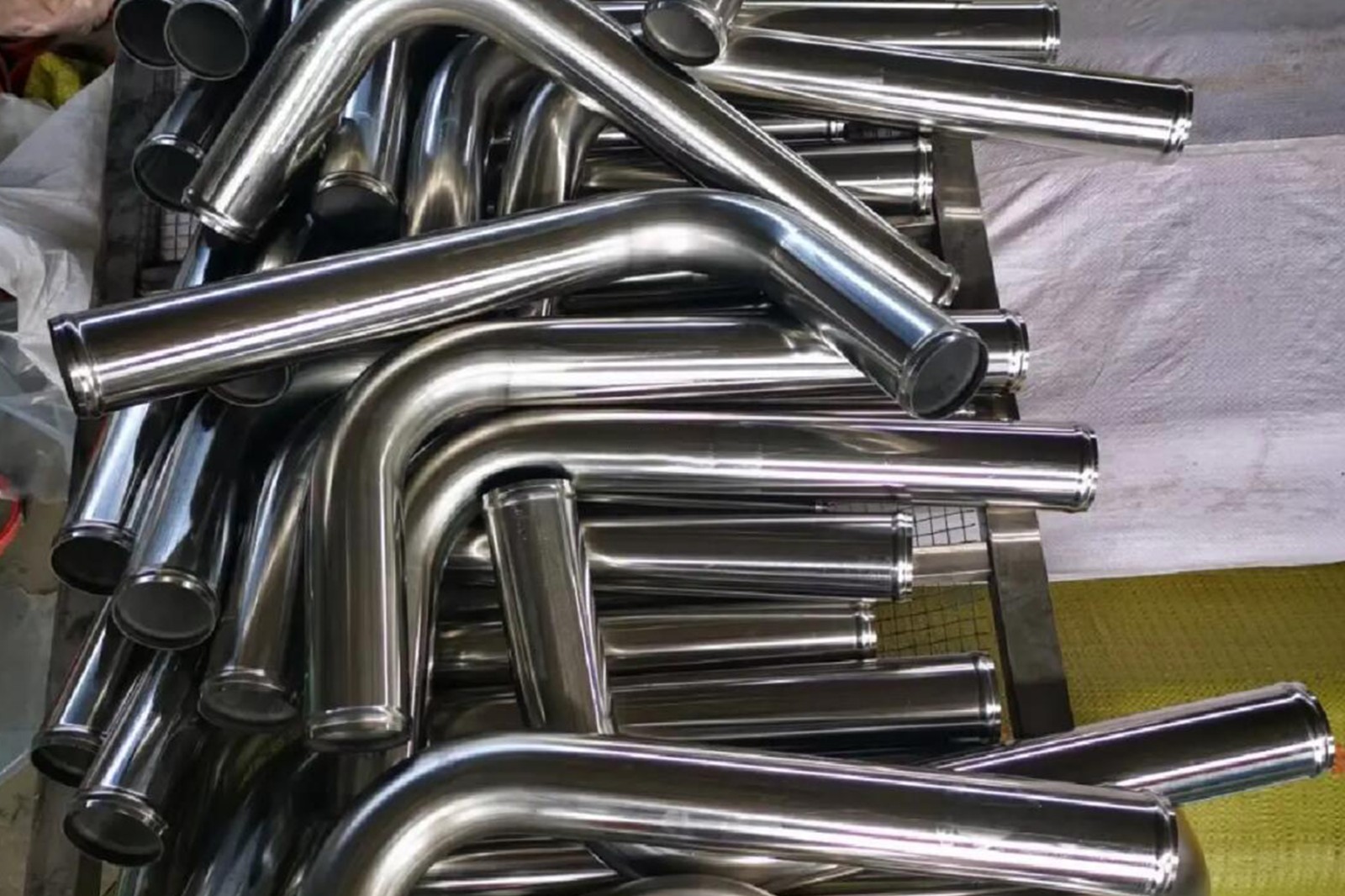

Bend Tube

Grade304/409L/436L/439/430/441
O.D⌀10mm-70mm
W.T0.6mm-1.5mm
Welding methodTIG Welding
Expansion test1.3 times of the pipe OD
Bending testBend 180°,no cracks in the weld seam


Stainless Steel
Pipe

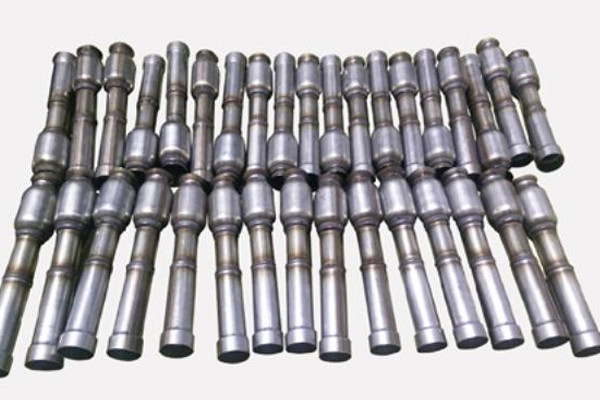

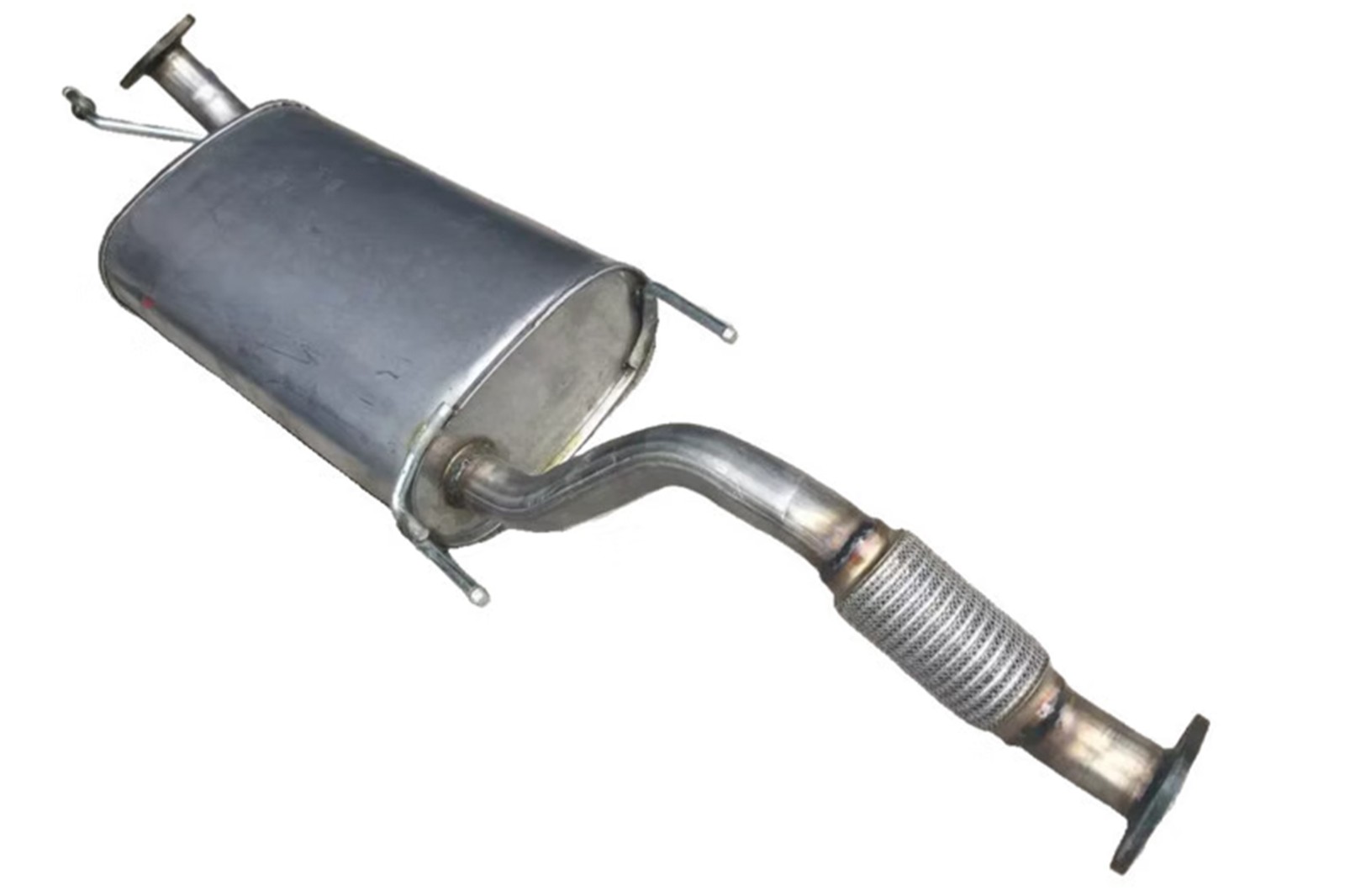

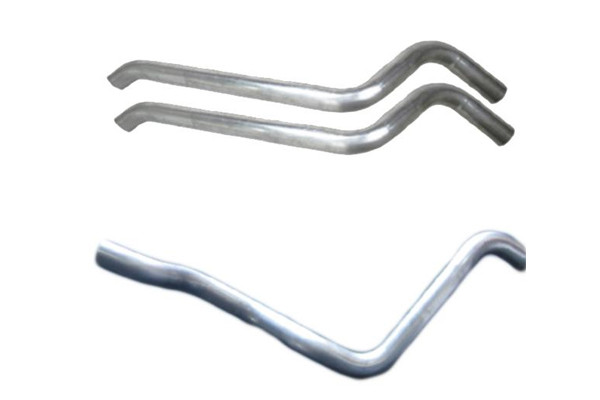

Vehicle Exhaust Assembly

Grade304/409L/436L/439/430/441
O.D⌀45mm-100mm
W.T1.0mm-1.5mm
Welding methodSecondary bonding
Expansion test1.3 times of the pipe OD
Bending testBend 180°,no cracks in the weld seam



Stainless Steel
Pipe

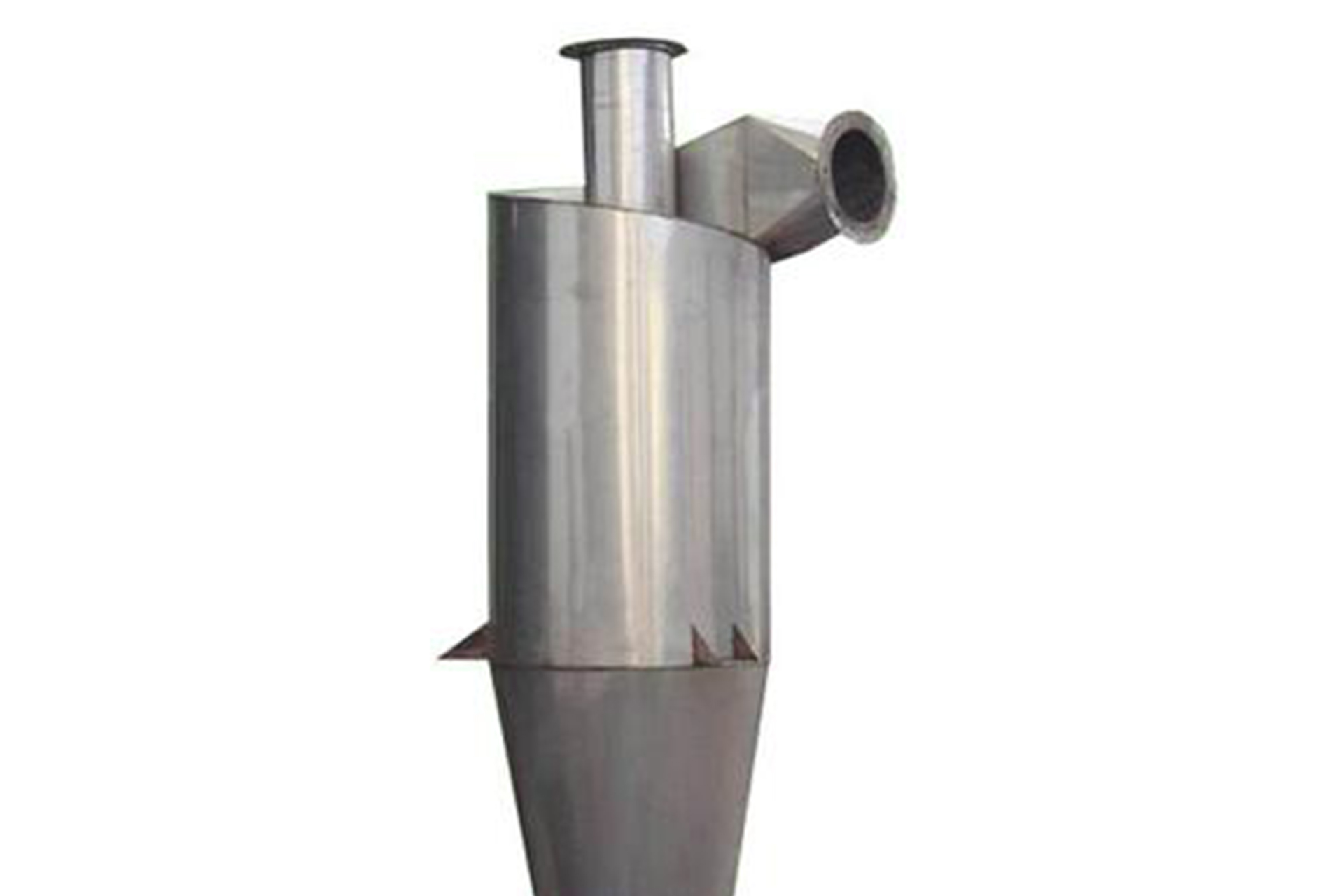

Stainless Steel Cyclone


Grade304/409L/436L/439/430/441
O.D⌀50mm-133mm
W.T0.6mm-1.5mm
Welding methodTIG Welding
Expansion test1.3 times of the pipe OD
Bending testBend 180°,no cracks in the weld seam




Stainless Steel
Pipe






Stainless Steel Welded Tube Standard


GBJIS
ASTMUNSBSEN
S3535012Cr17Mn6Ni5N1Cr17Mn6Ni5NSUS201201S201001.4372
S3545012Cr18Mn9NiSN1Cr18Mn8NiSNSUS202202S202001.4373
S3011012Cr7Ni71Cr7Ni7SUS301301S301001.4319
S3048006Cr19Ni100Cr19Ni10SUS304304S304001.4301
S30403022Cr19Ni1000Cr19Ni10SUS304L304LS304031.4306
S3045806Cr19Ni10N00Cr19Ni9NSUS304N1304N
S304511.4315
S3090806Cr23Ni130Cr23Ni13SUS309S309SS30908
1.4833
S3160806Cr17Ni12M020Cr17Ni12Mo2SUS316316S31600
1.4401
S31603022Cr17Ni12Mo200Cr17Ni14Mo2SUS316L316LS316031.4404
S3165806Cr17Ni12Mo2N00Cr17Ni12Mo2NSUS316N316NS31651-
S3216806Cr1Ni11Ti0Cr18Ni10TiSUS321321S405001.4541
S1134806Cr13Al0Cr13AlSUS405405S405001.4002
S11163022Cr11TI-SUs409409S409001.4512
S11203022Cr1200Cr12SUS410---
S1171010Cr171Cr17SUS430430S43000
1.4016
S1179010Cr17Mo1Cr17MoSUS434434S410001.4113
S4031012Cr121Cr12SUS403403S40300-
S4100812Cr131Cr13SUS410410S410001.4006
S4202020Cr132Cr13SUS420J1420S420001.4021
S4407068Cr177Cr17SUS440A
440AS44002-


Stainless Steel Tube Applications


Stainless Steel

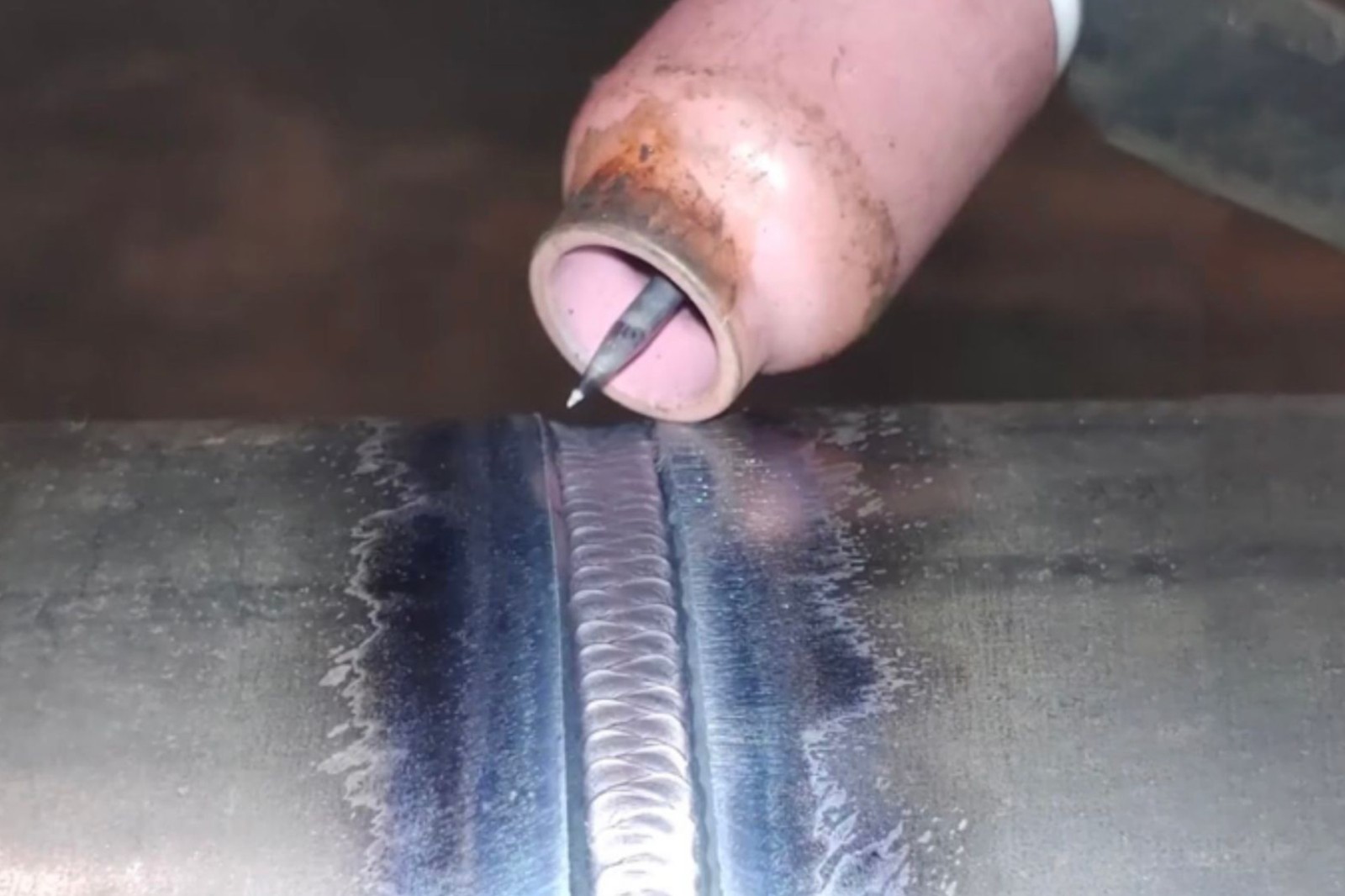

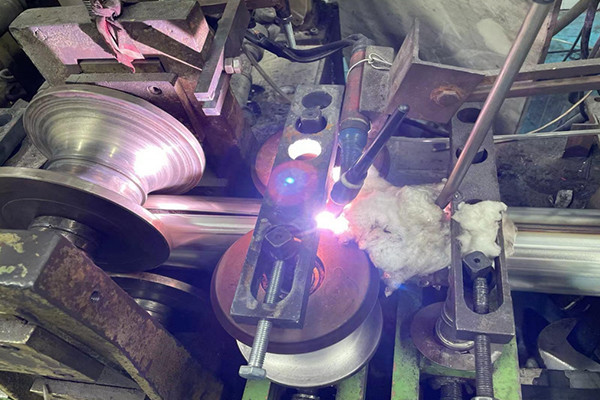

Argon arc Welding & Plasma Welding

Pipe

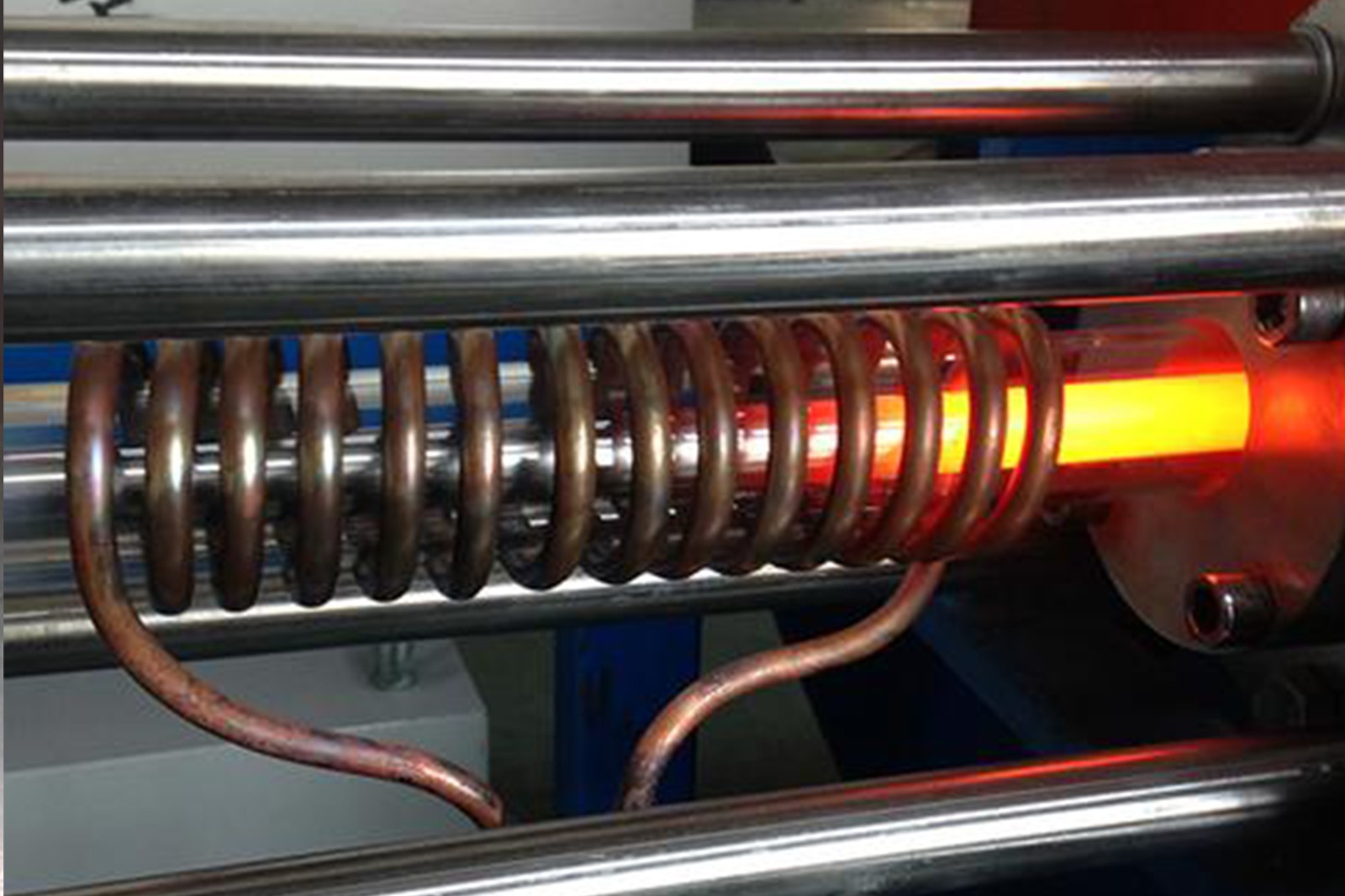

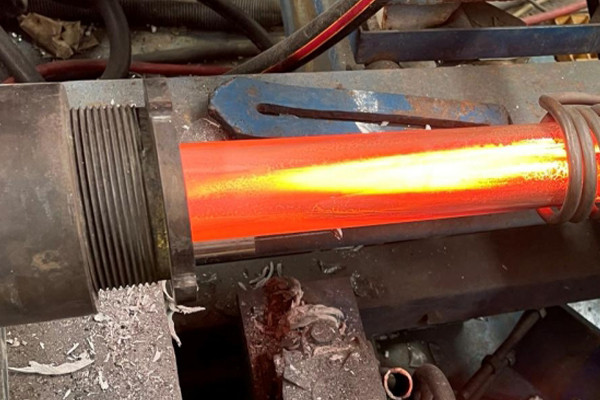

Stainless Steel Pipes Online Annealing

Stainless Steel

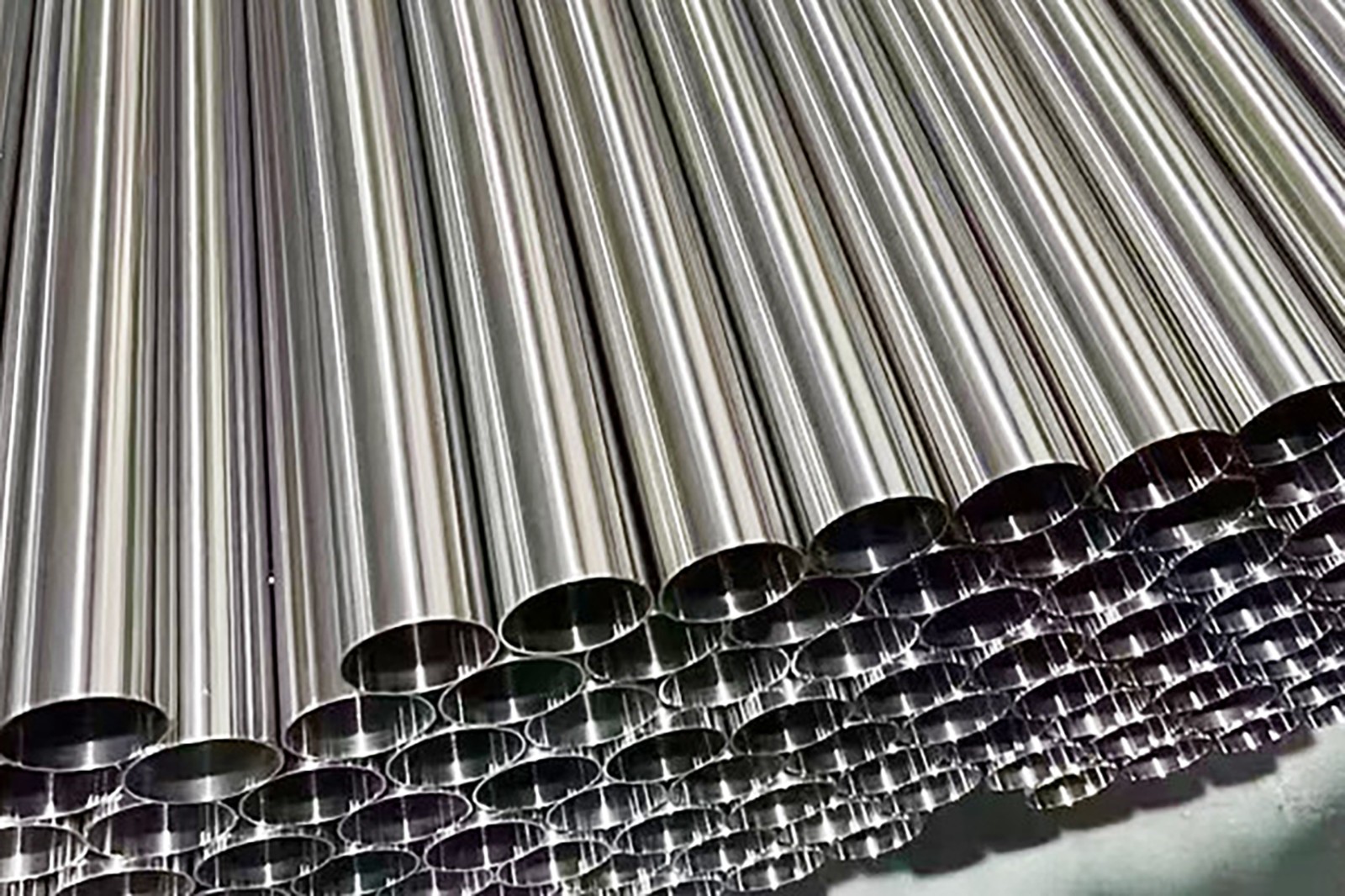

Surface Treatment of the Pipes




Stainless Steel Tube Applications


Pipe
Stainless Steel



Stainless Steel Pipe Processing Services


· Bending · Welding · Flaring · Cutting · Punching · Polishing · Pickling



Pipe
Stainless Steel
Pipe
Stainless Steel
Pipe

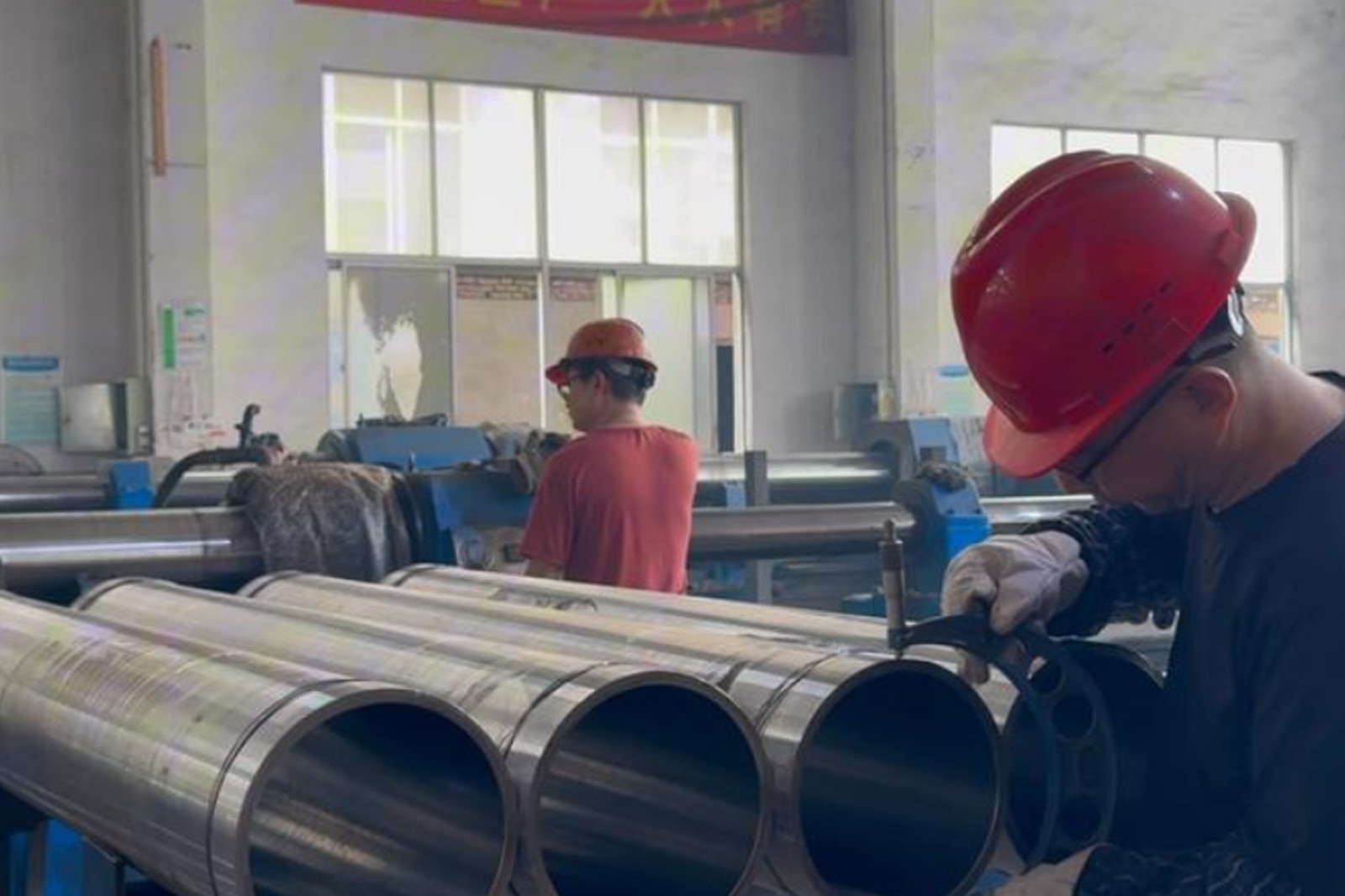

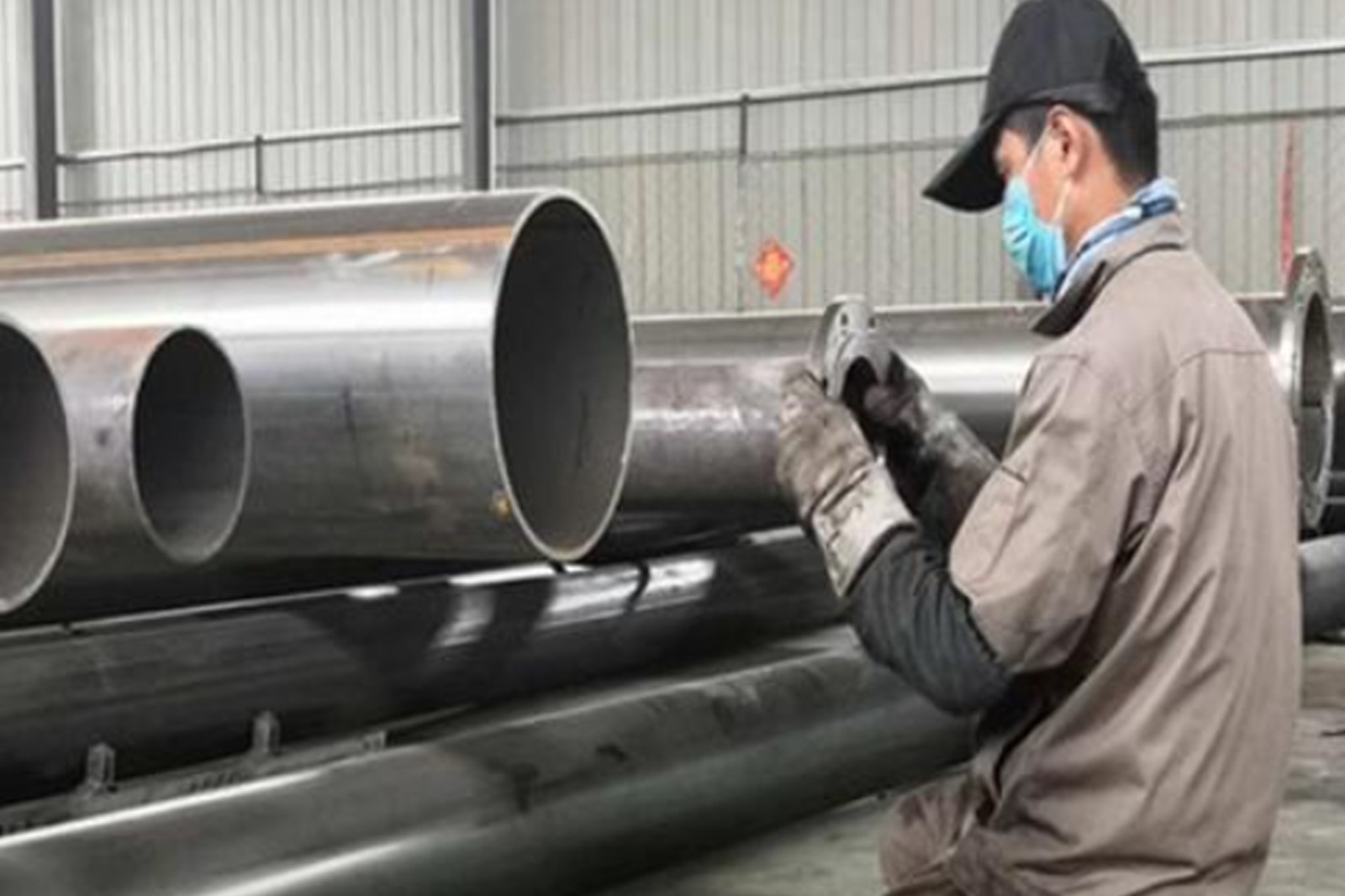

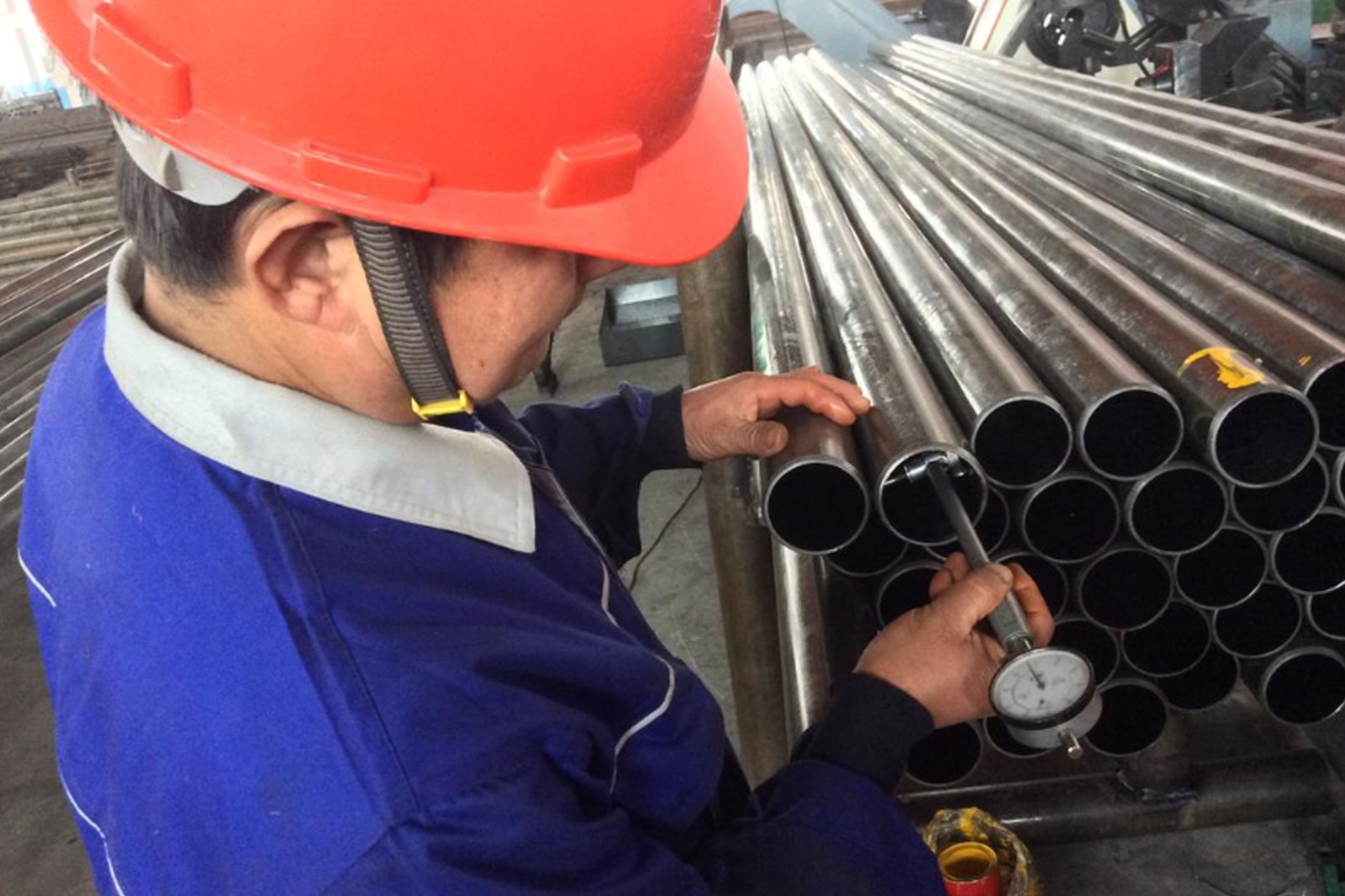

Inspect and repair the pipe one by one


Stainless Steel
Pipe
Stainless Steel



Spectrum Testing


Pipe
Stainless Steel

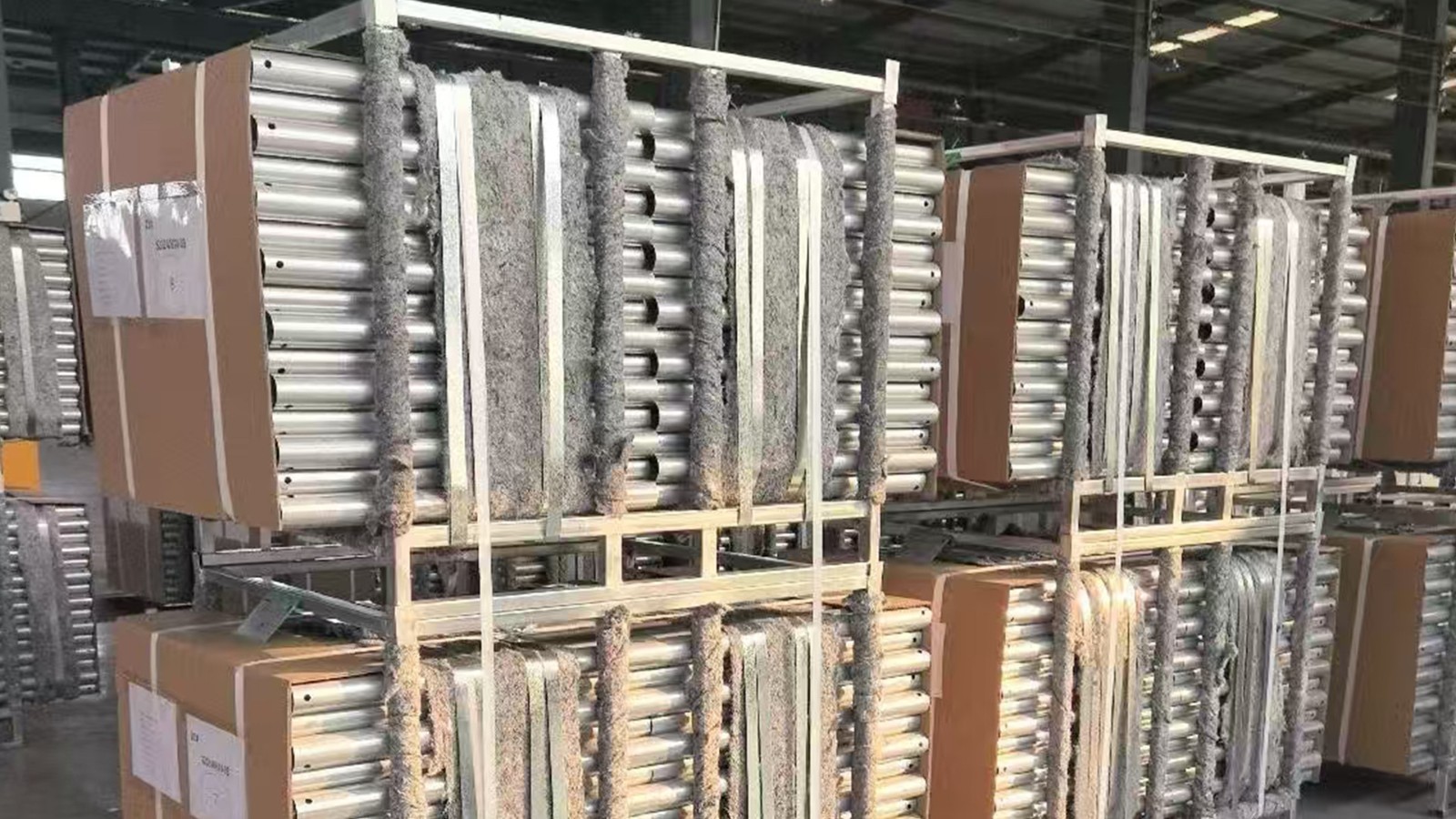

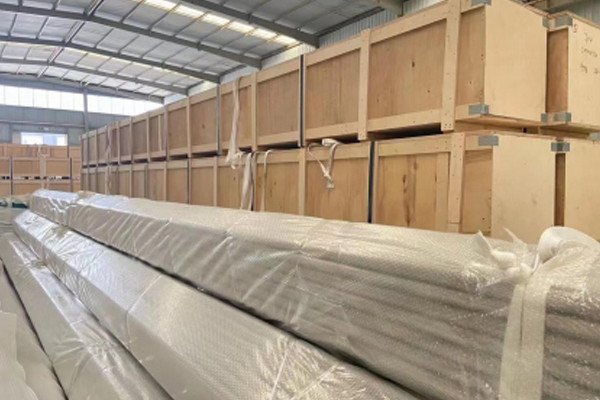

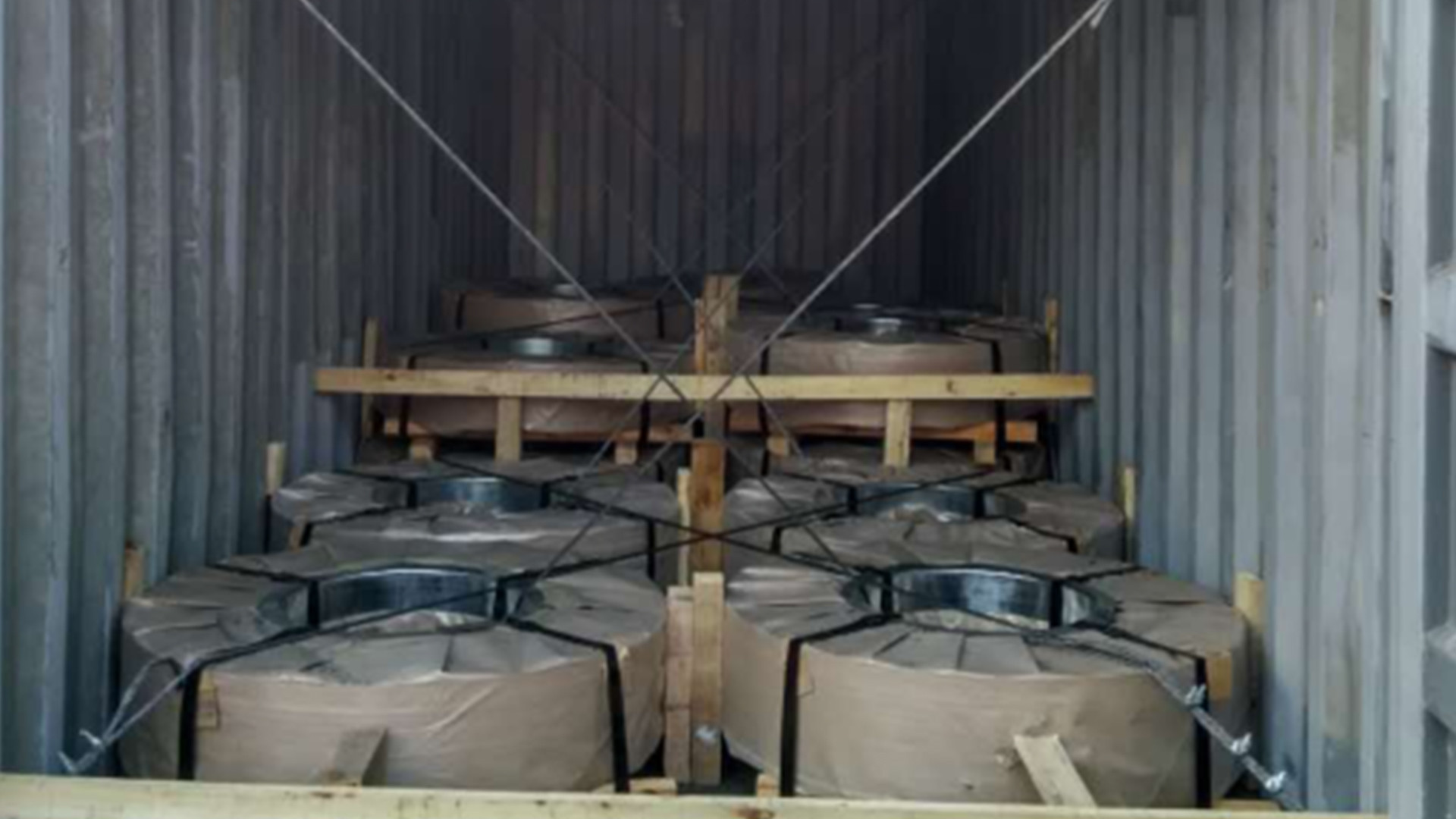

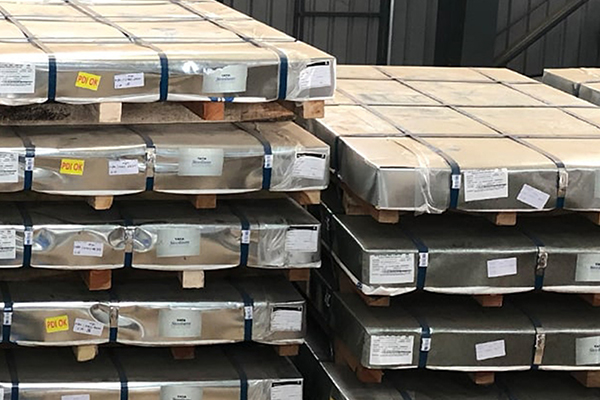

Packing And Shipping
